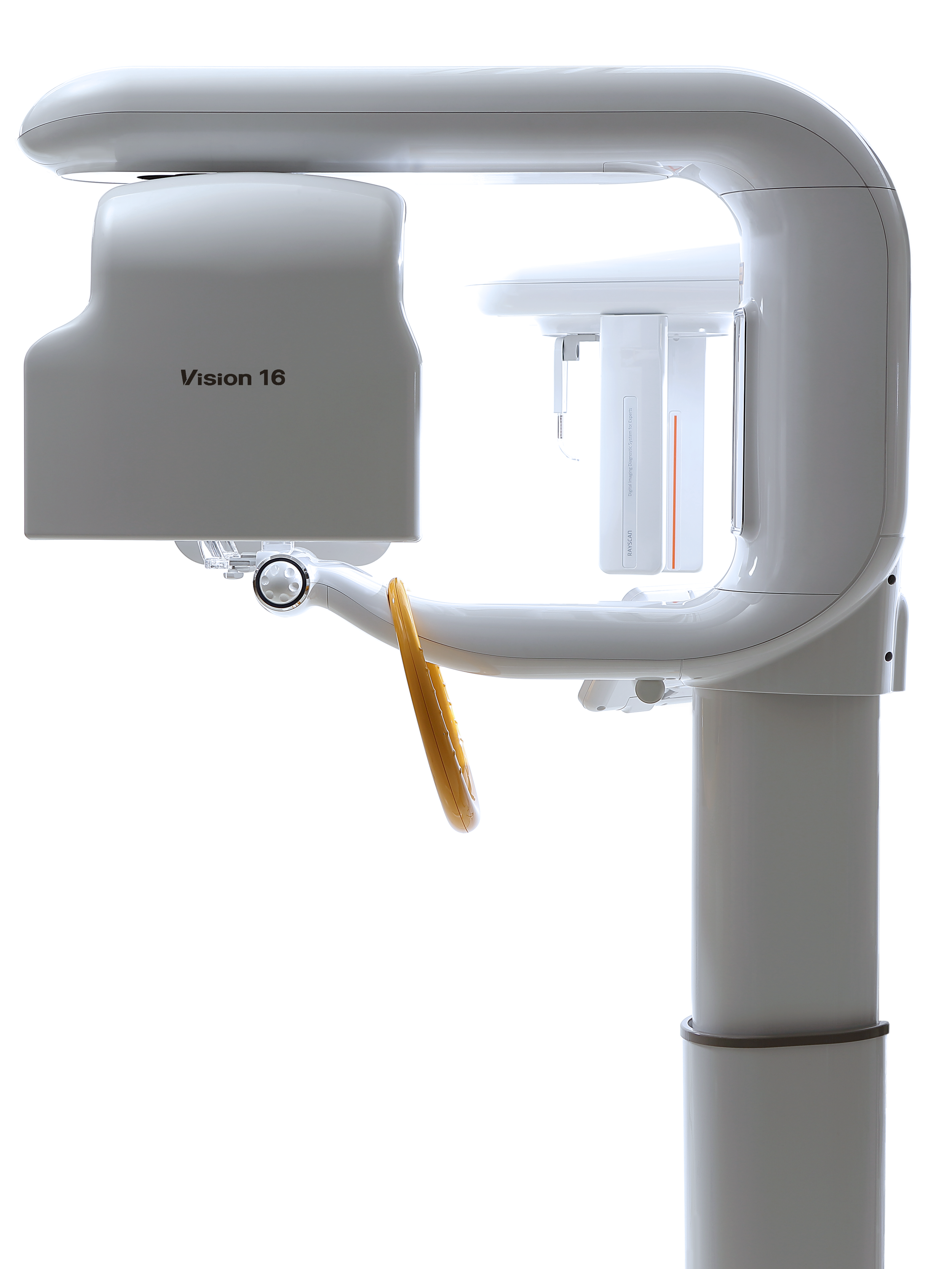

A medical imaging machine labeled 'Vision 16' with a white and gray color scheme, a large circular opening, and a yellow cord hanging down.
A medical imaging machine labeled 'Vision 16' with a white and gray color scheme, a large circular opening, and a yellow cord hanging down.

Cutting Edge CBCT Technology for more accurate diagnostics and treatment planning

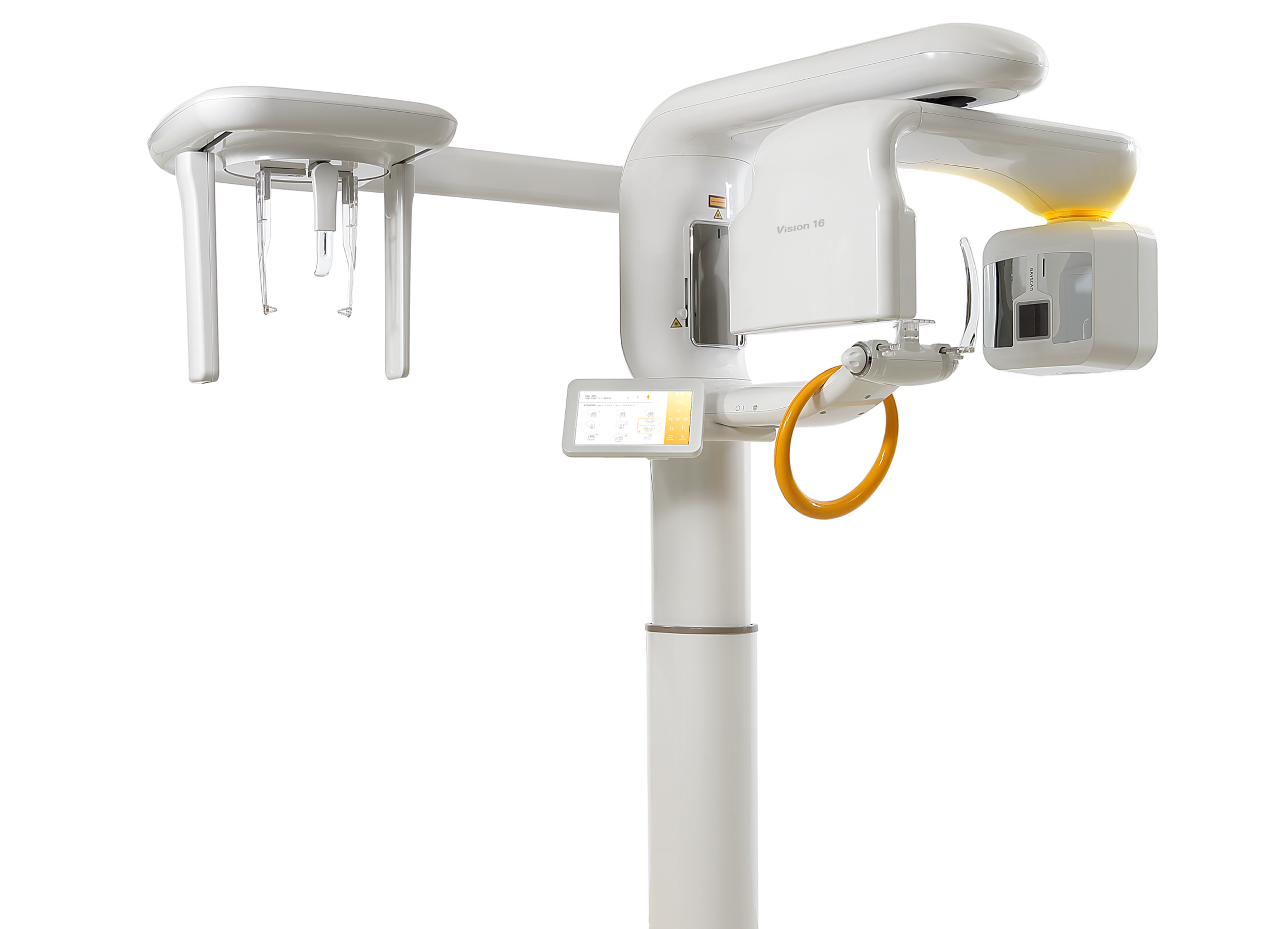

A modern dental panoramic x-ray machine with a white and silver design, featuring a control panel and imaging arm.

Combining cutting-edge CBCT technology
with precise 3D facial scanning

Vision 16 combines cutting-edge CBCT technology with precise 3D facial scanning (optional feature) to give dental professionals a comprehensive, full-spectrum imaging solution. With capabilities including panoramic X-ray, cephalometric imaging, and facial scanning, it delivers a complete view of the patient’s oral and craniofacial structures for more accurate diagnostics and treatment planning.

Download Brochure

Why Vision?

All-in-One Imaging for Comprehensive Clinical Care

With a fully adjustable Free FOV range from 4×3 cm to 16×10 cm, Vision 16 adapts to a wide variety of clinical needs. It supports procedures across multiple specialties—implantology, periodontics, and TMJ diagnosis making it an ideal imaging solution for modern, multidisciplinary dental practices.

A large medical imaging machine, specifically an MRI scanner, with a white body, a sliding table, and a control screen on the side.
A badge with a gold and blue design stating "10 Year Warranty - CBCT full parts" with stars and laurel wreaths.

SCAN DATA

Which Vision is right for you?

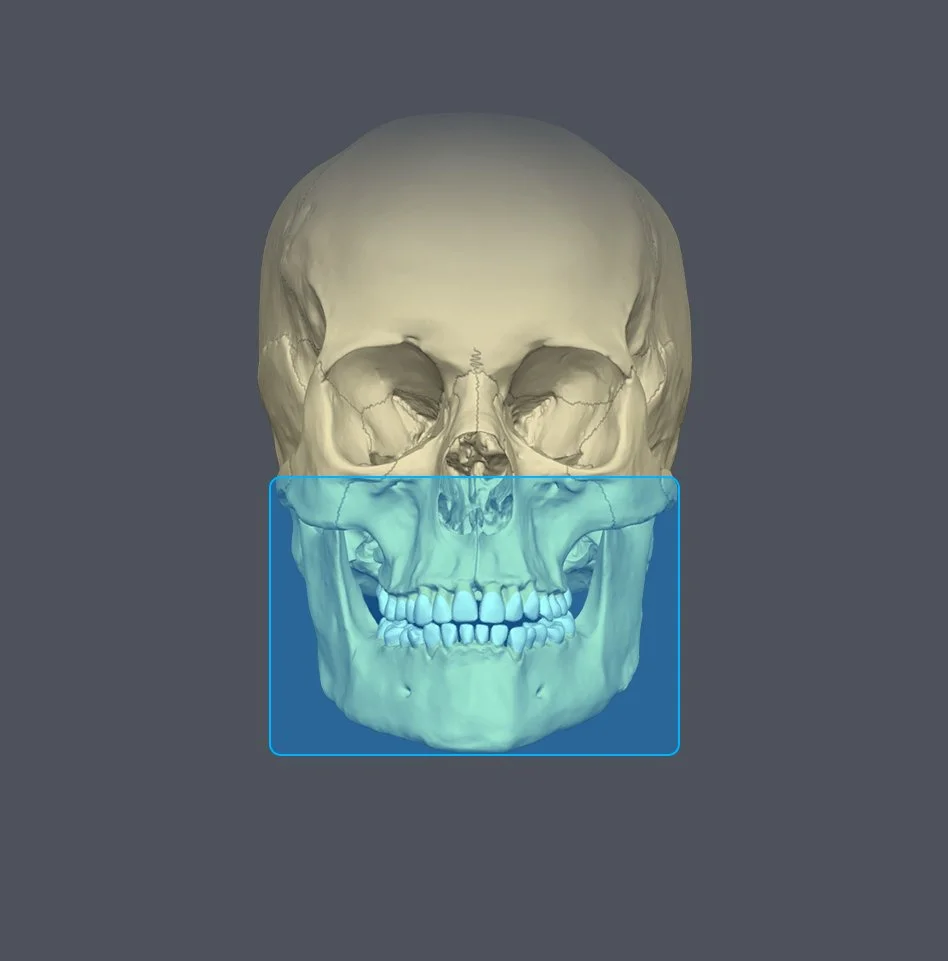

Digital 3D rendering of a human skull with the jaw highlighted in blue.

Vision 16

16 x 10 FOV

Diagnosis, Implants, Full Arch, Endo, TMJ, Pre-screening for OSA

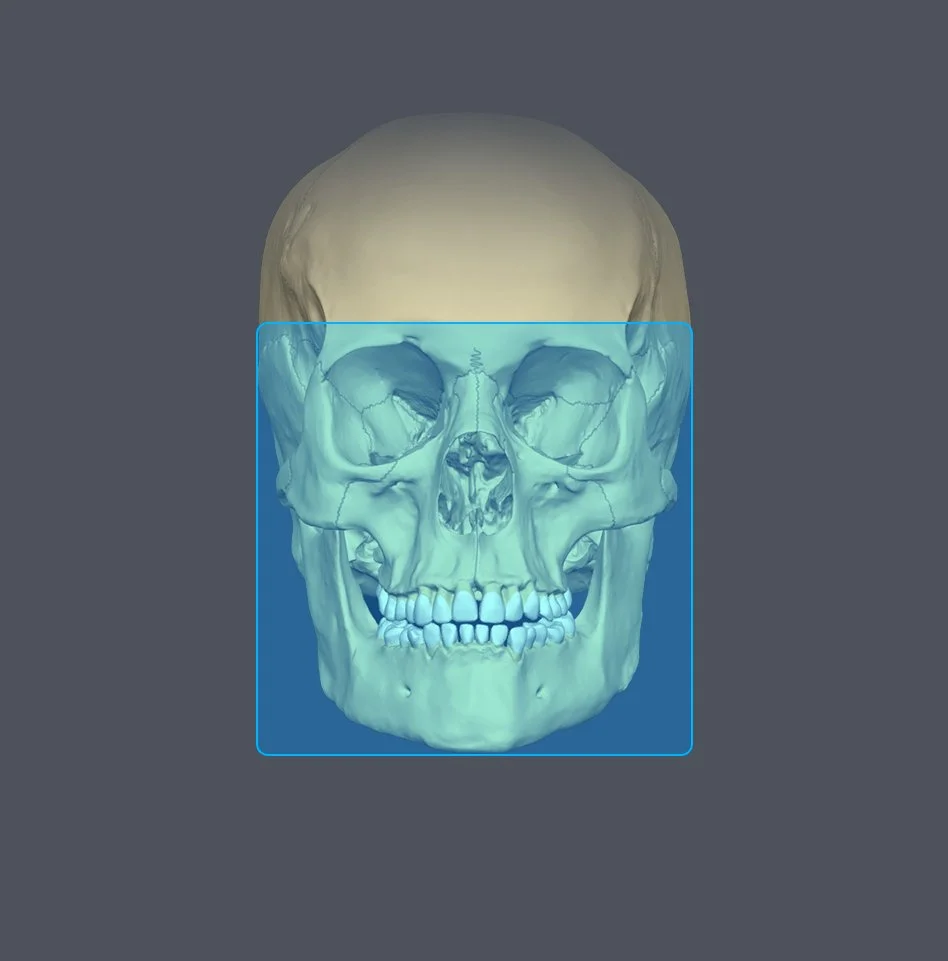

Digital rendering of a human skull from the front, with the upper part of the skull seen at the top and the face area highlighted in blue.

Vision 18

18 x 16 FOV

Diagnosis, Implants, Full Arch, Endo, TMJ, OSA treatment, Orthognathic Surgery, Zygomatic Implants

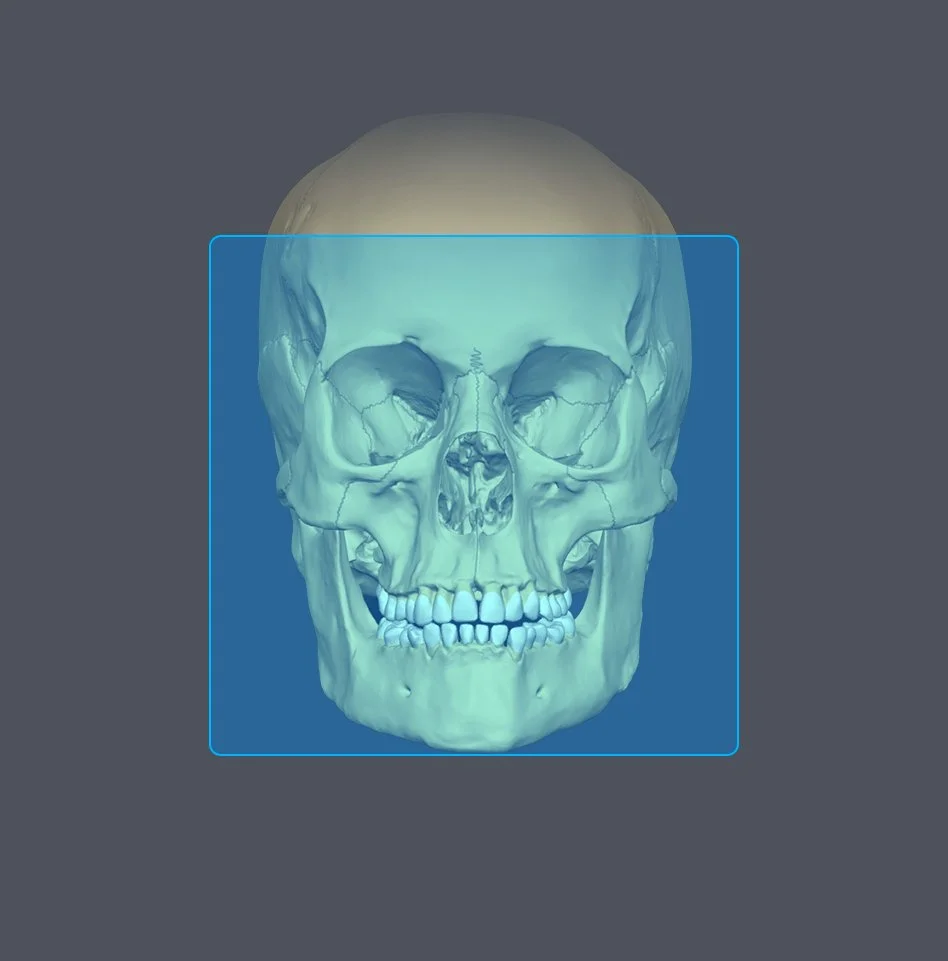

Digital 3D rendering of a human skull with visible facial bones and teeth, shown from the front on a gray background.

Vision 20

20 x 20 FOV

Diagnosis, Implants, Full Arch, Endo, TMJ, OSA treatment, Orthognathic Surgery, Zygomatic Implants

RAY Customers

Woodbridge, VA

Woodbridge, VA

Orland Park, IL

Orland Park, IL

Clemmons, NC

Clemmons, NC

Laguna Heights, CA

Laguna Heights, CA

King, NC

King, NC

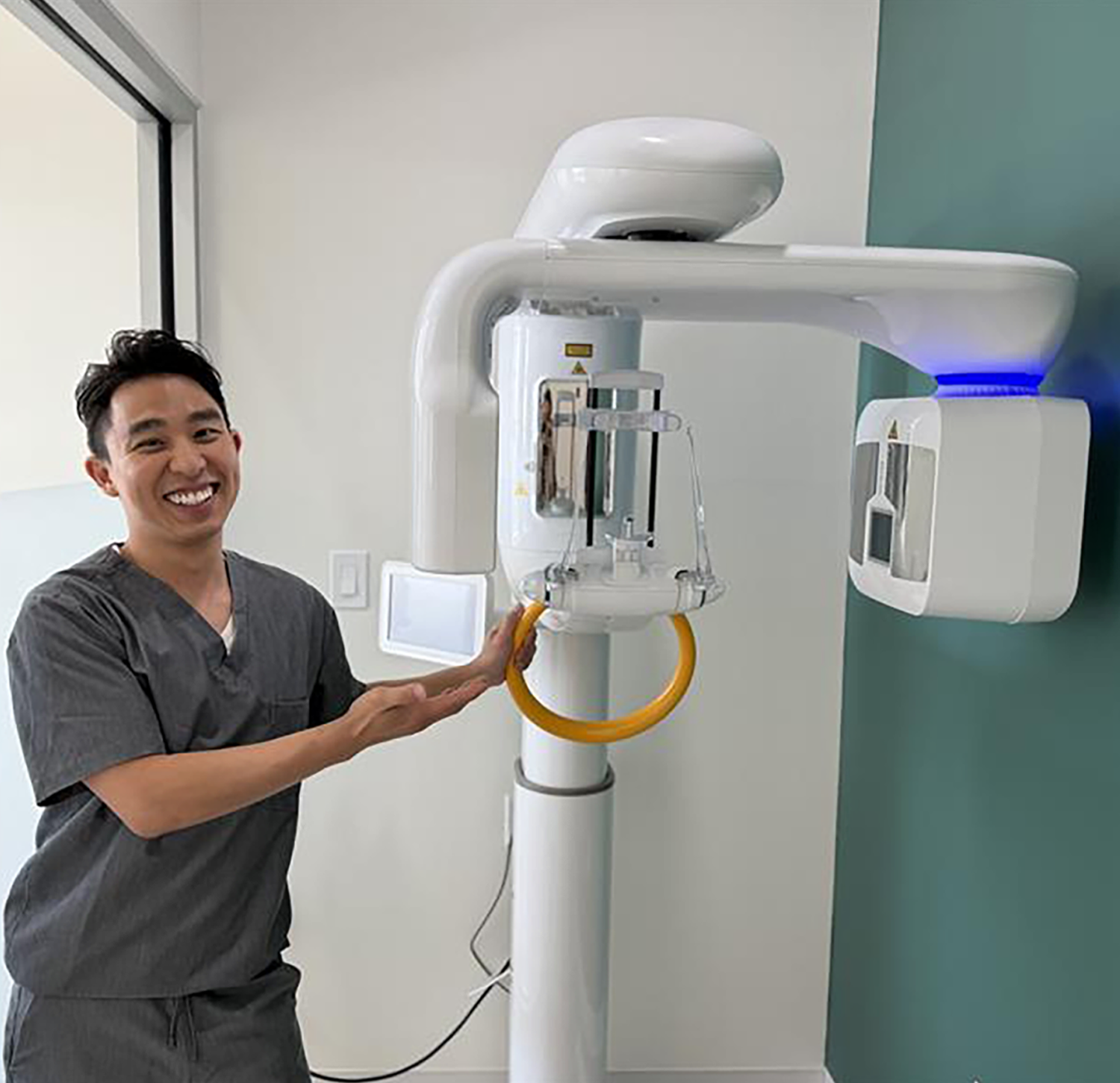

Manor, TX
